3000kg Carton cardboard produce line

Brand Name : hh

Model Number : 1600

Place of Origin : china

Power Consumption : 3KW

Product Name : Corrugated Carton Box Machine

Capacity : 50-100pcs/min

Material : Stainless Steel

Design speed : 100m/min

Weight : 3000kg

Voltage : 220V/380V

Plate type : corrugated cardboard

Contact Now

technical parameter:
Hydraulic mill stand
A,technical parameter:

Work width	1600mm
Paper diemeter	MAX: 1500mm MIN:300mm
Paper width	MAX: 1600mm MIN:600mm
Max.weigh	3T
Clip paper head	Tooth type 3 in 4 in
Brake	Ddisc multipoint pneumatic
Air pressure	0.4---0.8Mpa
Size	400018001800
Weight	≈3.5T

B,Main performance features:

★ Using the full hydraulic drive to complete the base paper clamping, loosening, moving to the middle, left and right translation and other actions, the base paper lifting by hydraulic drive.
★ The brake adopts multi-point braking system, tooth disc structure, equipped with heat dissipation fan, Adker pneumatic components, stable tension, super long life.
★ Large diameter spindle design, swing arm sliding stable, high frequency treatment with steel guide rail, super wear resistance,
★ hydraulic cylinder shaft type assembly, not under radial force, convenient maintenance.

C,Hydraulic system parameters:

Work pressure	Lift hydraulic cylinder	Clip the hydraulic cylinder	Motor power of the hydraulic station	Electromagnetic valve voltage
16---18Mpa	￠100×440mm	￠63×1300mm	3.7KW --380V -- 50Hz	220V--50 Hz

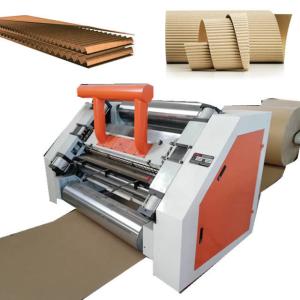

280CR Fingerless Single Facer

3000kg Carton cardboard produce line
Glue Rollers:

Diameter

Φ215mm

Processing Way

Surface of glue roller is grinded, then with 25 line rut type net dot,then plating chrome
Surface of glue banlance roller is grinded then plating chrome

Control Way

Cylinder control of the Lifting Up-down

Glue Supply

Glue circulating system(storage tank+glue pump)

Corrugated Rollers:

Diameter

Down Roller:Φ280mm

Material

48CrMo high quality alloy steel, rigidity HRC55°-58°

Processing Way

The surface of upper-lower roller is plating chrome, annealing, hardening and tempering, surface grinded

Fulte Type

(U/V) ACBEFK

Heating way of the reel paper

Steam, oil ,Electric heating,

Press Rollers:

Diameter

Φ280mm

Material

medium steel (MS)45#

Processing Way

The surface is grinded then plating chrome, hardening and tempering(With Buffer)

Control Way

Cylinder control of the Lifting Up-down

Preheater Rollers:

Diameter

UP Roller:Φ320mm

Material

seamless steel tube

Material band or origin

Tianjin Iron & Steel

All connected by flexible metallic tubes

Common Spec:

Style of Transmit cardboard

Vacuum Cover adsorbable style, Hight pressure Draw fan.with wind control Adjusting & noise deadening device.

Style of Control Roller

Pneumatic control the upper roller, pressure roller and glue roller

Glue Width Adjusting

Electric adjusting

Driving Way:With frequency inverter

►Common Spec:

Working width: 1600mm
Design Speed:100m/min Working Speed: 60-80m/min
Temperature: 180—200℃
Air pressure: 0.8—1.3Mpa

►Spec of Motor:
Main Motor: 7.5kw
Nominal voltage:380V 50Hz Continuous (S1) working Type

Cut off stacker machine

3000kg Carton cardboard produce line

Width	1600mm
Cutting length	300—999mm
Order keeping	99 orders
Cutting precision	±1.5mm
Max.design speed	80m/min
Max.production speed	60-70m/min
Weight	2000kg

Stacker for cut off machine

The single corrugated paper stacker
The single corrugated paper stacker is used to the cut off machine ,the cut off machine cut the cardboard and the single corrgated paper stacker will collect the cardboard . save the worker . the machine is made of medium plate welding .
The machine max.speed is 100m/min . the collect cardboard length is 1000mm. The machine can collect three unit cardboard . the machine can auto counter do not need to stop the machine . the max.height stacker is 100mm.
