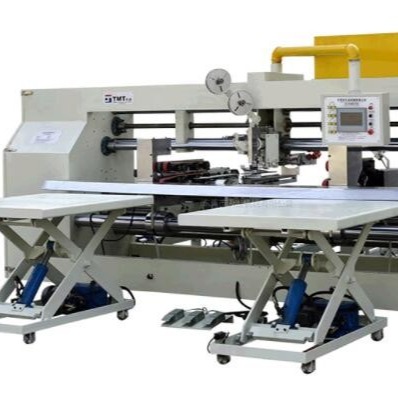

Semi-auto Corrugated Cardboard Stitcher Carton Box Stitching Machine
Automatic stapler machine consiste of three sections: feeding section, floding section, Nailing section. Digital display speed regulation, microcomputer amplitude modulation, simple, reliable and accurate control mode, automatic paper feeding, automatic folding, automatic counting.
Main specification
| 2400 |
2600 |
2800 |
| size A (mm) |
80-880 |
80-880 |
80-880 |
| size B (mm) |
700-2420 |
700-2620 |
700-2820 |
| size C (mm) |
160-840 |
160-840 |
160-840 |
| size D (mm) |
260-1050 |
260-1150 |
260-1250 |
| Installation area(mm) |
3500*14000 |
4000*15000 |
4200*16000 |
| Power (kw) |
10kw |
12kw |
12kw |
| Weight(kg) |
5000kg |
5500kg |
6000kg |
| Speed |
600 nails/min |
600 nails/min |
600 nails/min |
Feature
1. Imported dual servo drive, accurate accuracy, reduced mechanical transmission, can effectively reduce the mechanical failure rate
2. Touch screen operation, parameters (nail distance, number of nails, seed sorting, back panel) change quickly and easily
3. The entire control system uses Omron PLC control system
Our company speciaized in carton machinery for many years in China. Our main products are: high speed automatic flute laminator,semi-automatic flute laminator. high speed single facer machine.corrugated cardboard making line and so on.
Our quality is high .hope we could build a long term business relations. Dongguang Haohan Carton Machinery Co., Ltd. is located in the south of Beijing and north of Jinan, so we have convenient land and water facilities. We are a professional enterprise with a large scale to produce carton machinery and printing machinery. Our company has 80 workers including 10 engineering and technical staff members with senior titles. Our company has capability of product design and perfect quality guarantee system. With perfect technology, complete machine, high specialization degree, rich manufacturing experience, strong technical force, advanced overhauling measures and integrated managing system, our company is like an up-and-coming youngster in the carton printing machinery industry in China. Part of the printing machines made by our company are exported to Southeast Asia, Western Asia, the Middle East and South America.
